All the Best
The Phaze Audio Diana turntable delivers incredible sound for its price range. Its quality is evident in every component: a reliable motor, a massive platter with an additional plastic base, a standard Audio-Technica MM cartridge, and a built-in phono preamplifier.
Convenience Above All Else
The Phaze Audio Diana combines sleek style with user-friendly convenience. Setting it up takes just minutes, thanks to its built-in phono preamplifier for direct connection to any amplifier or active speakers. Playback speed (33 or 45 rpm) is easily selected by turning a single knob.

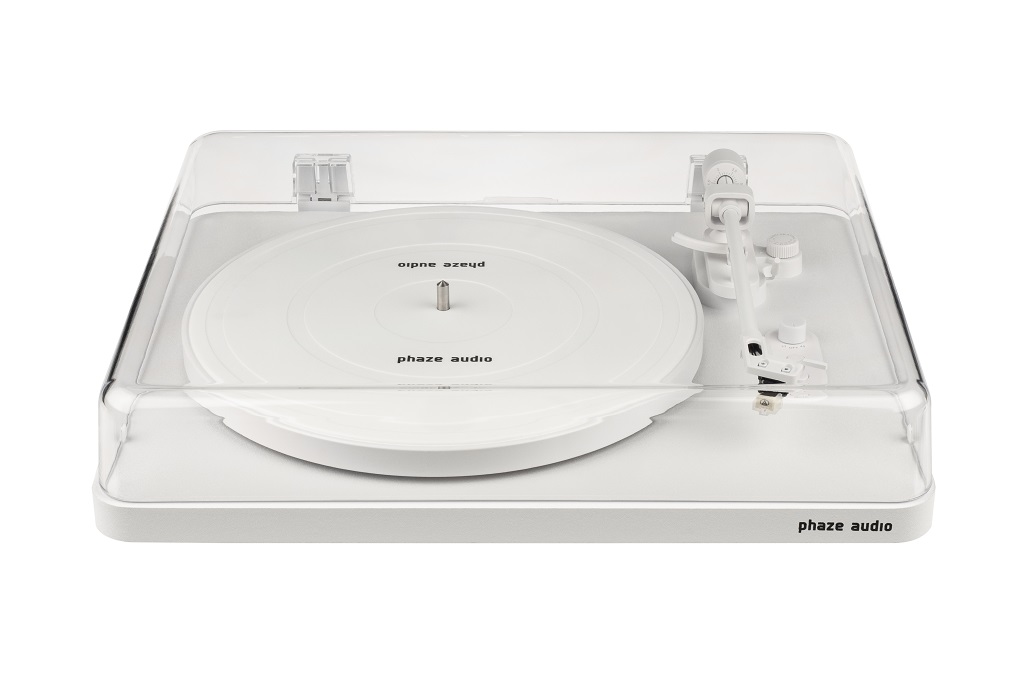

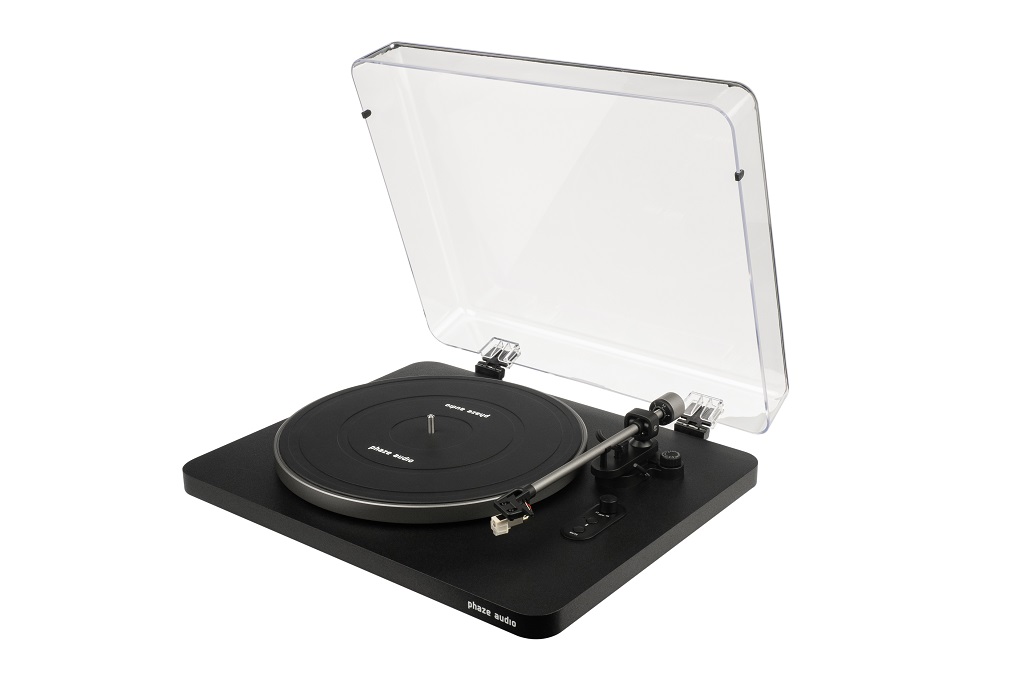

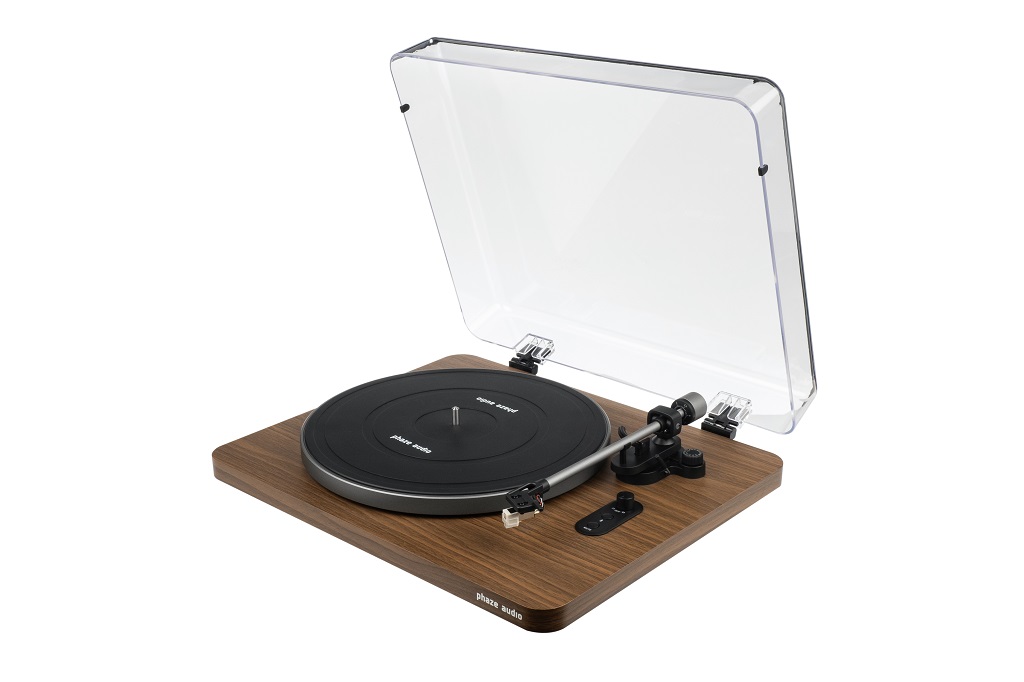

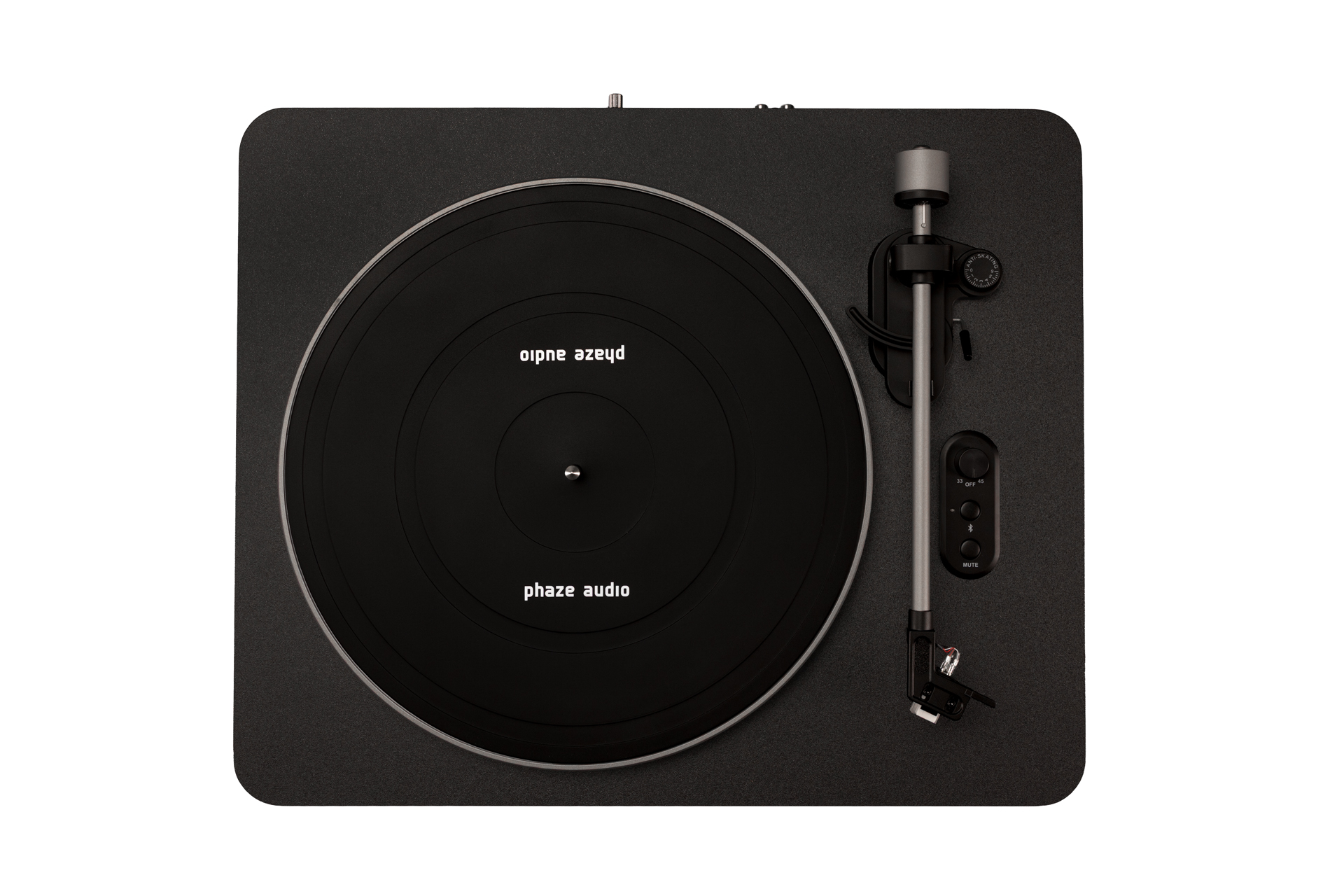

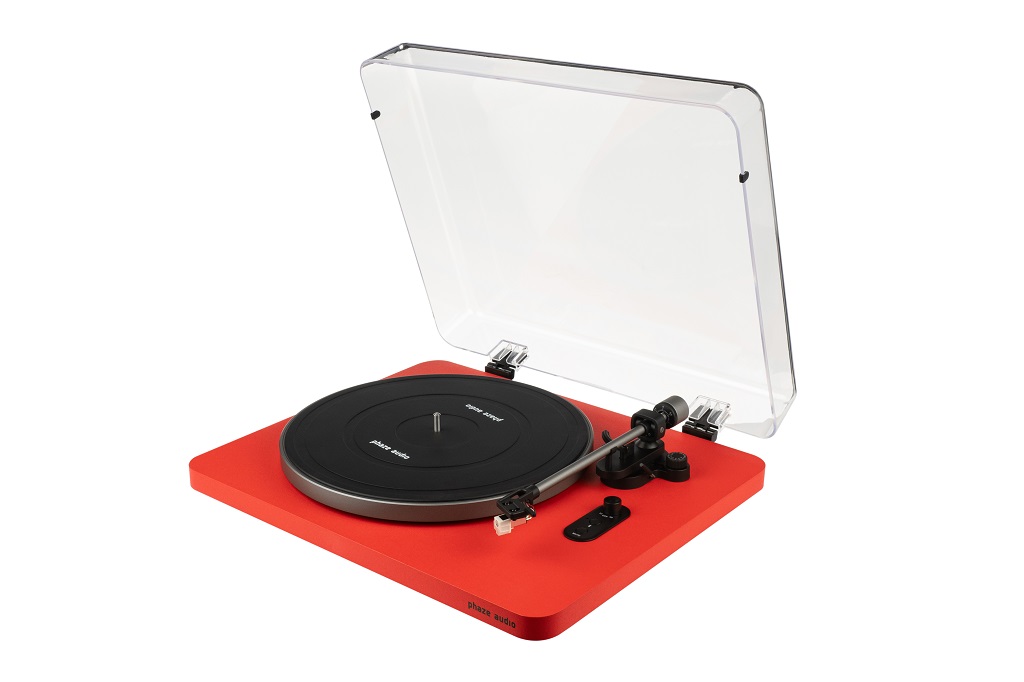

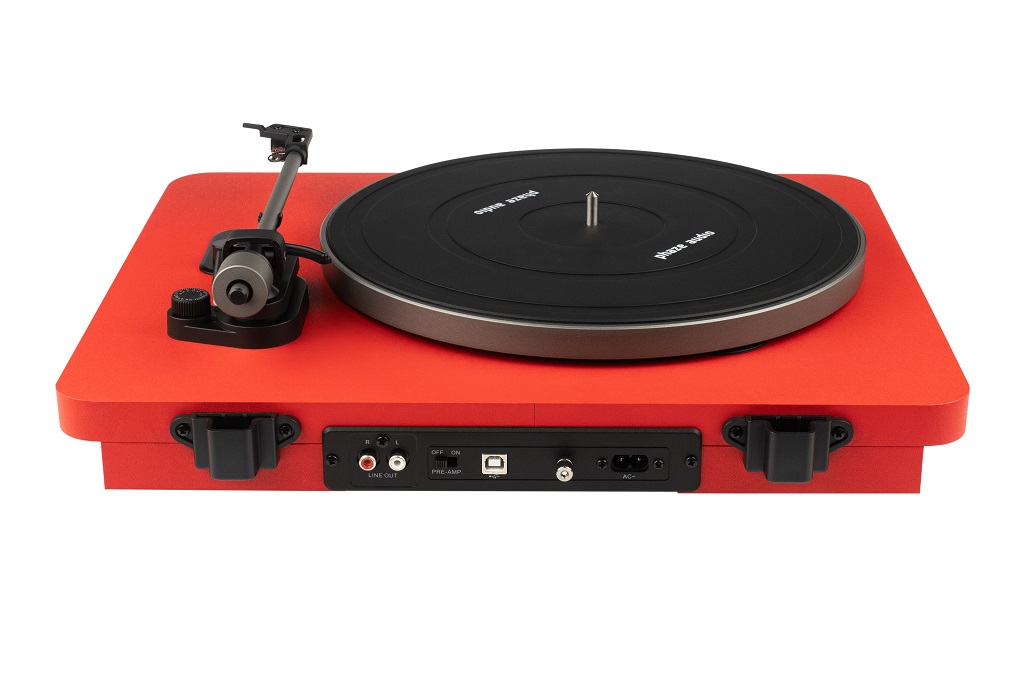

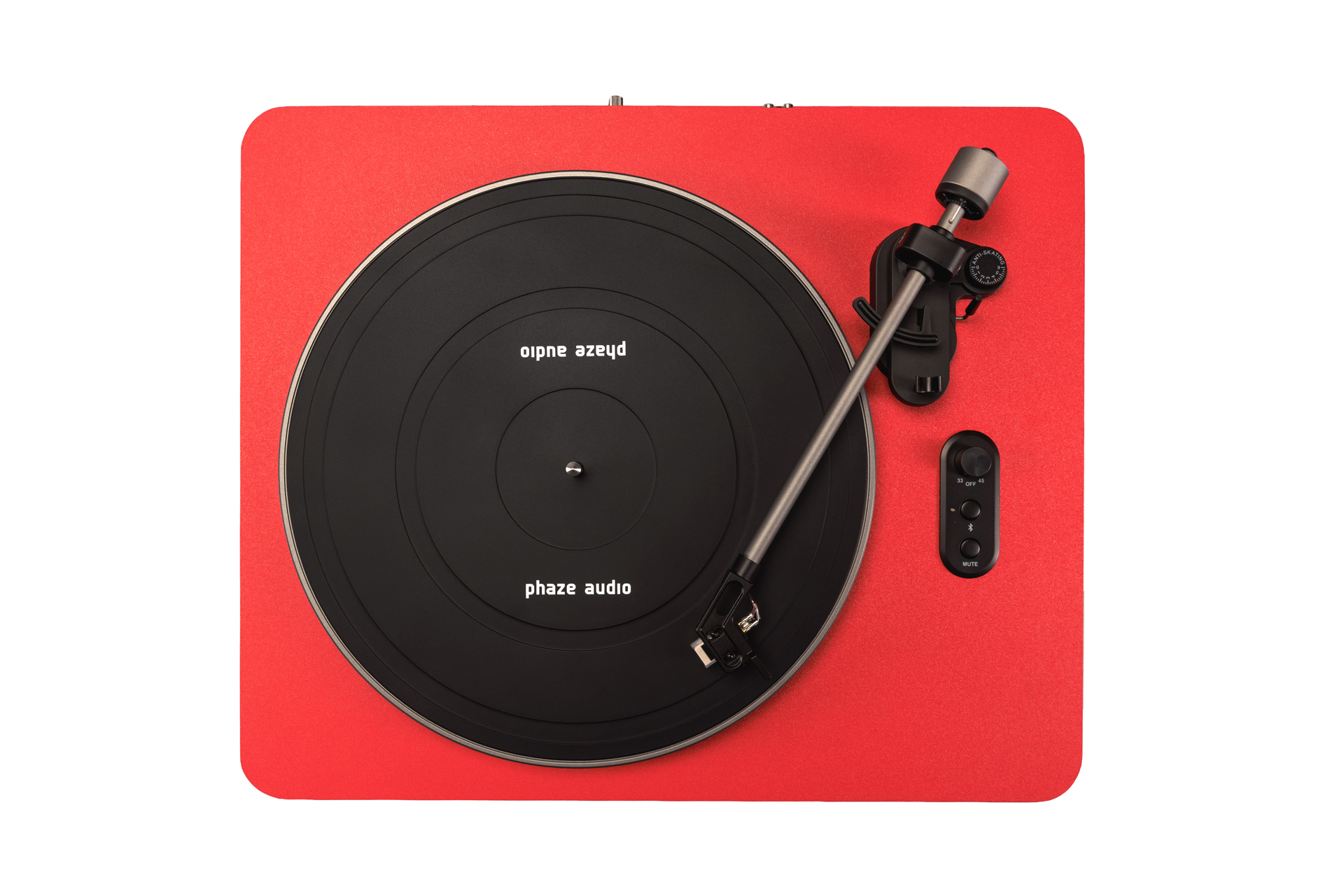

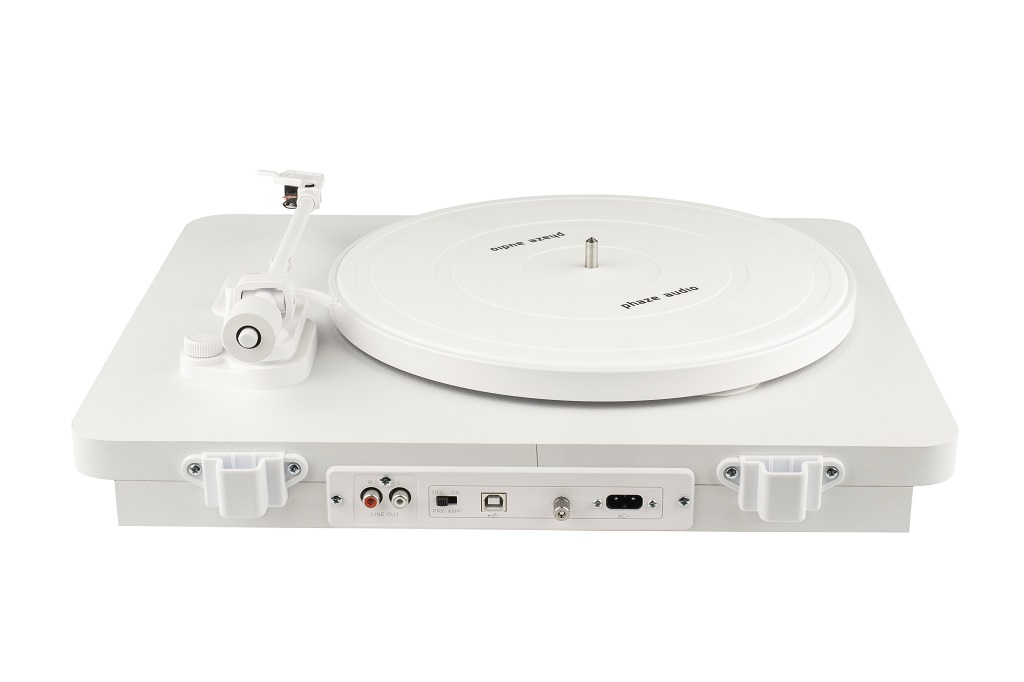

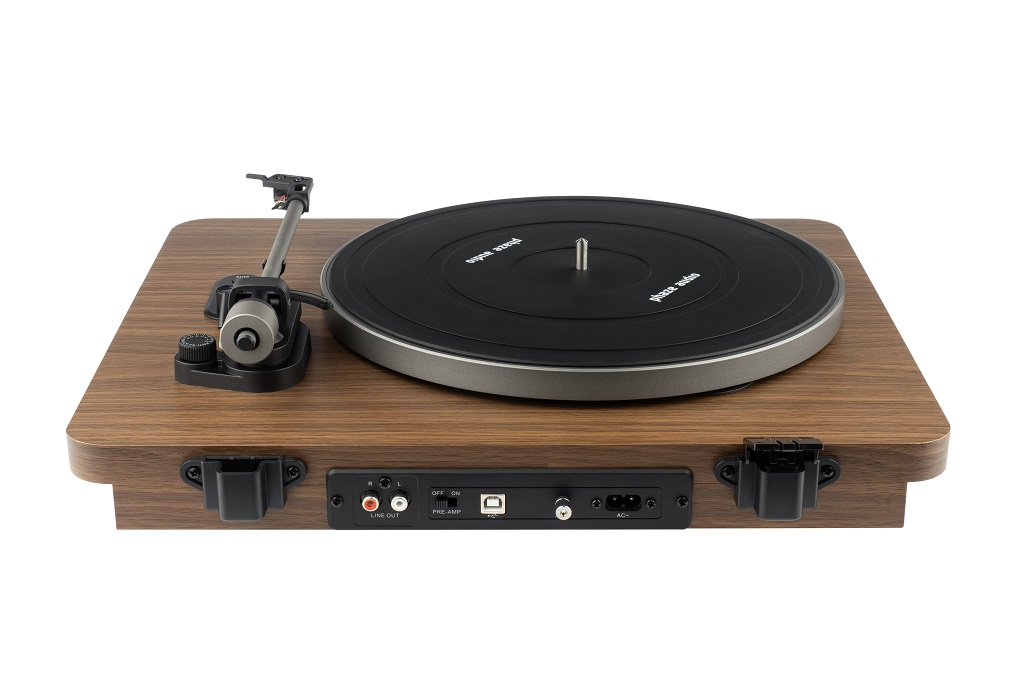

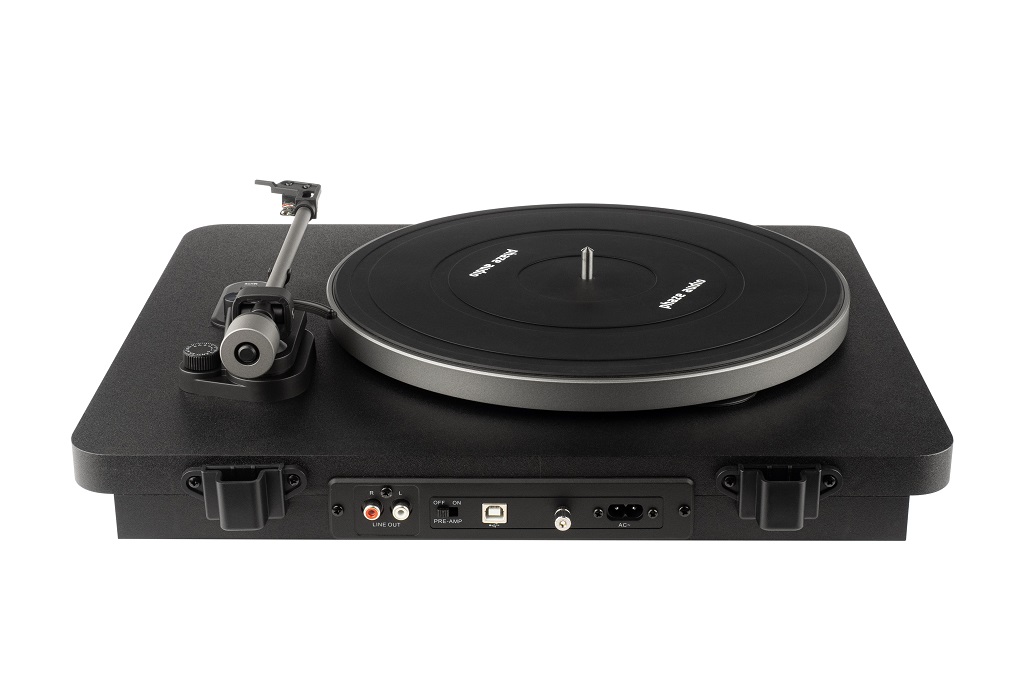

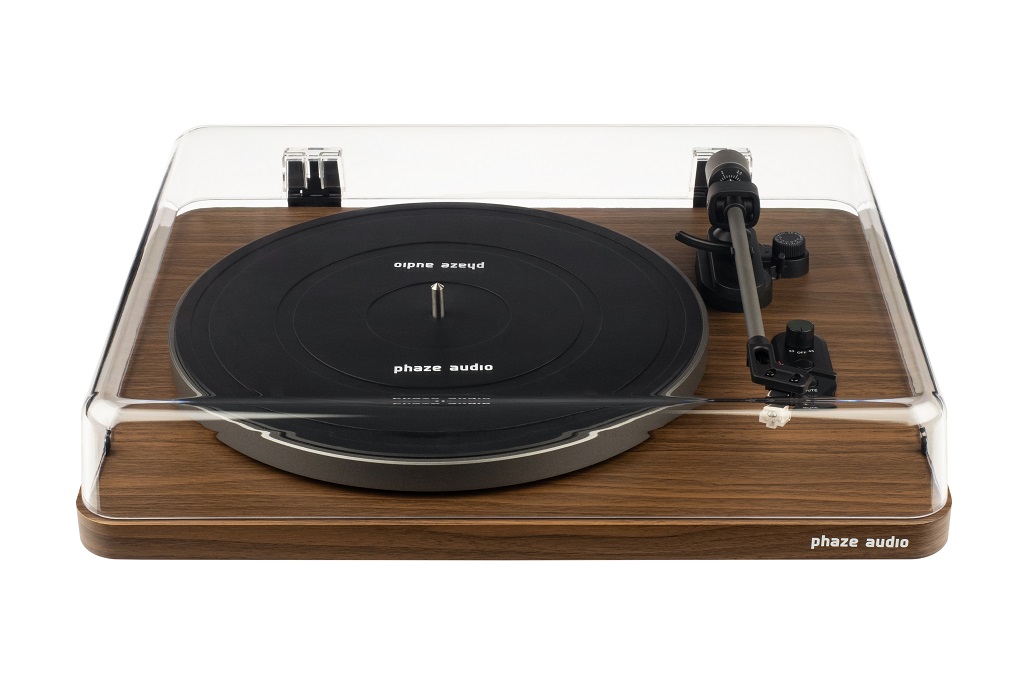

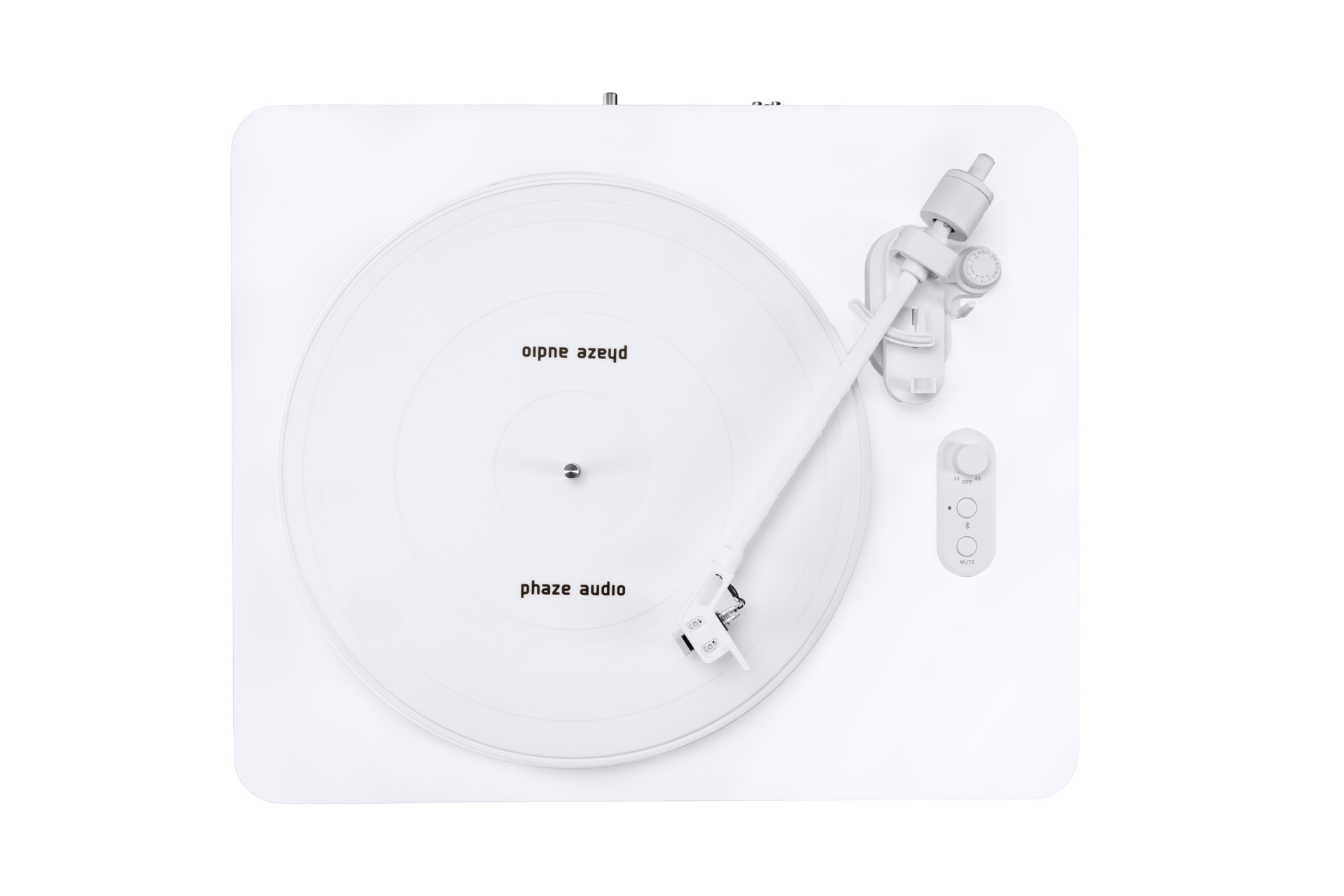

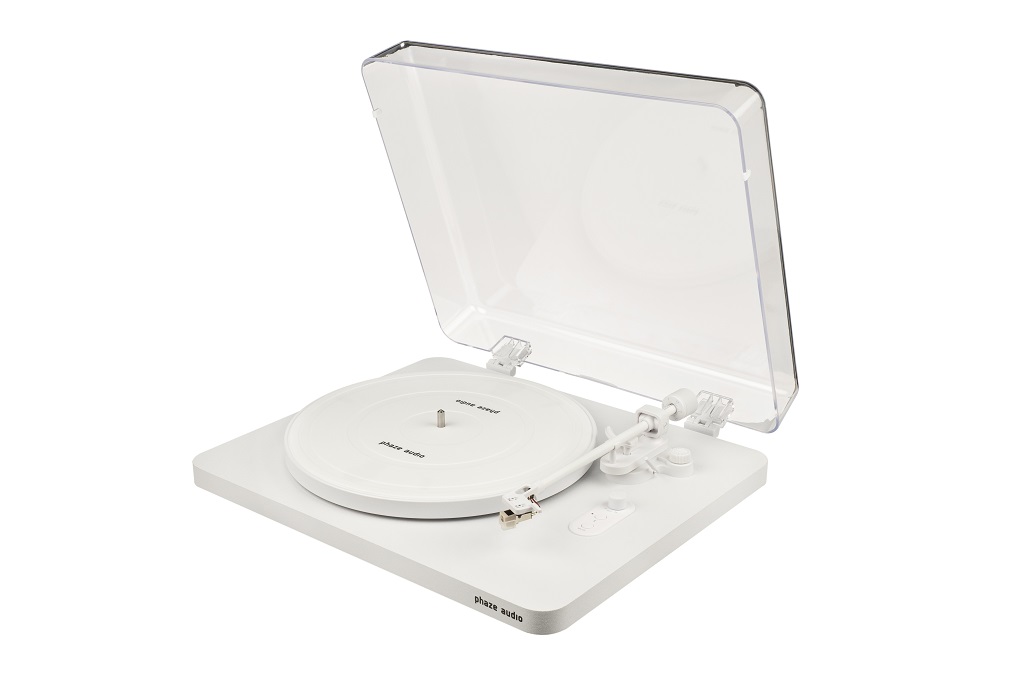

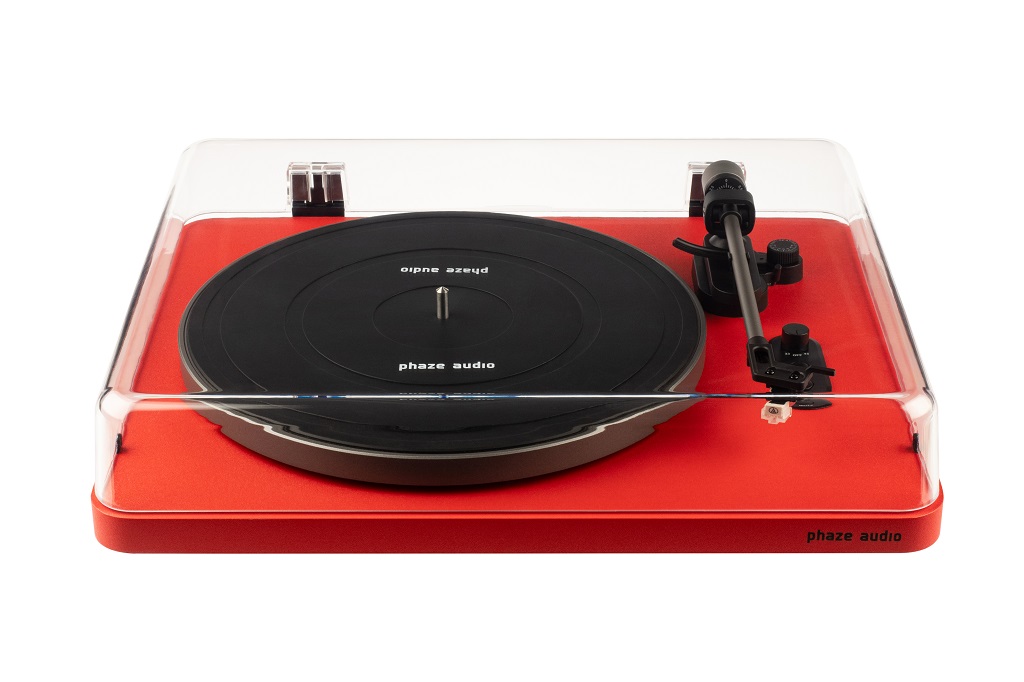

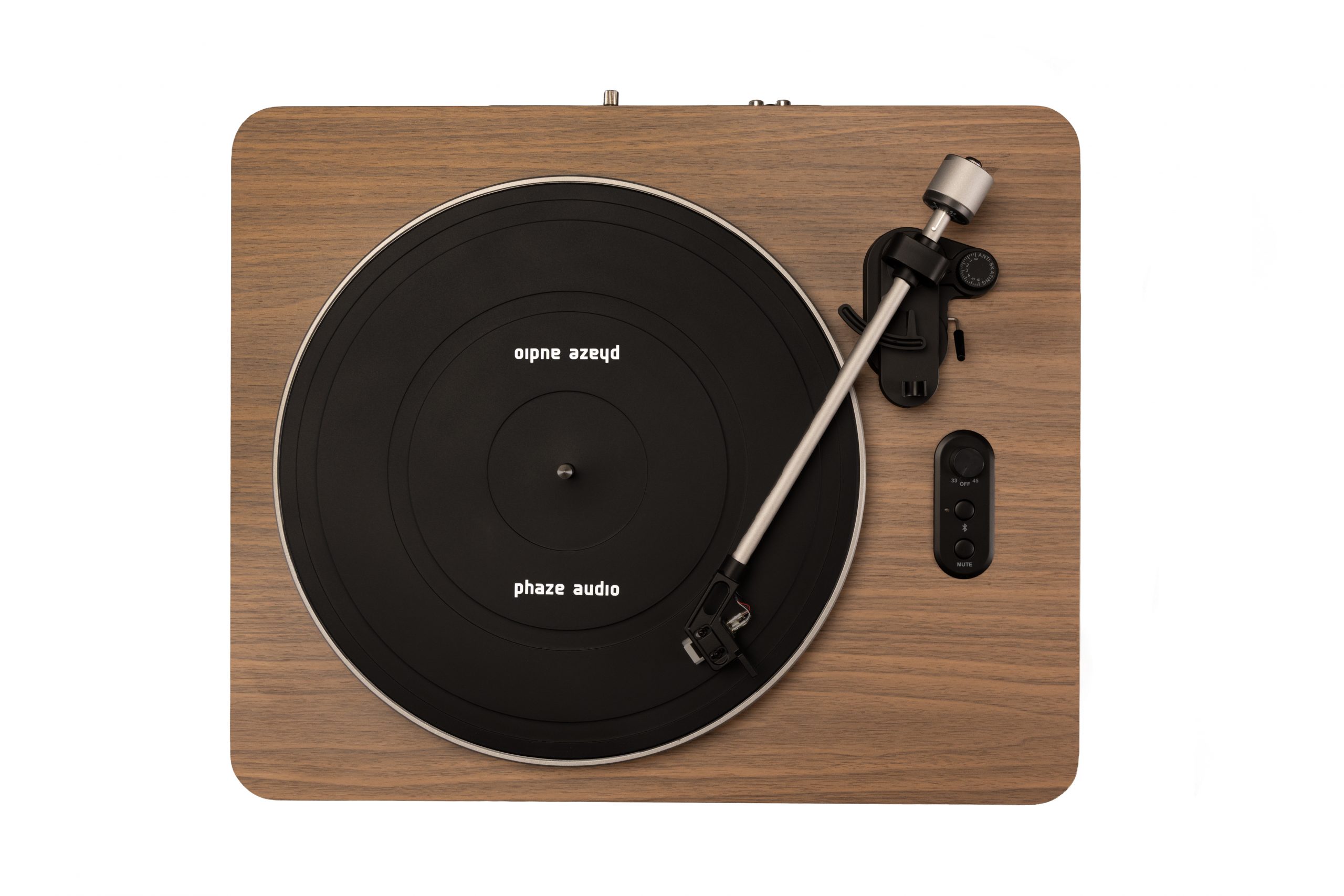

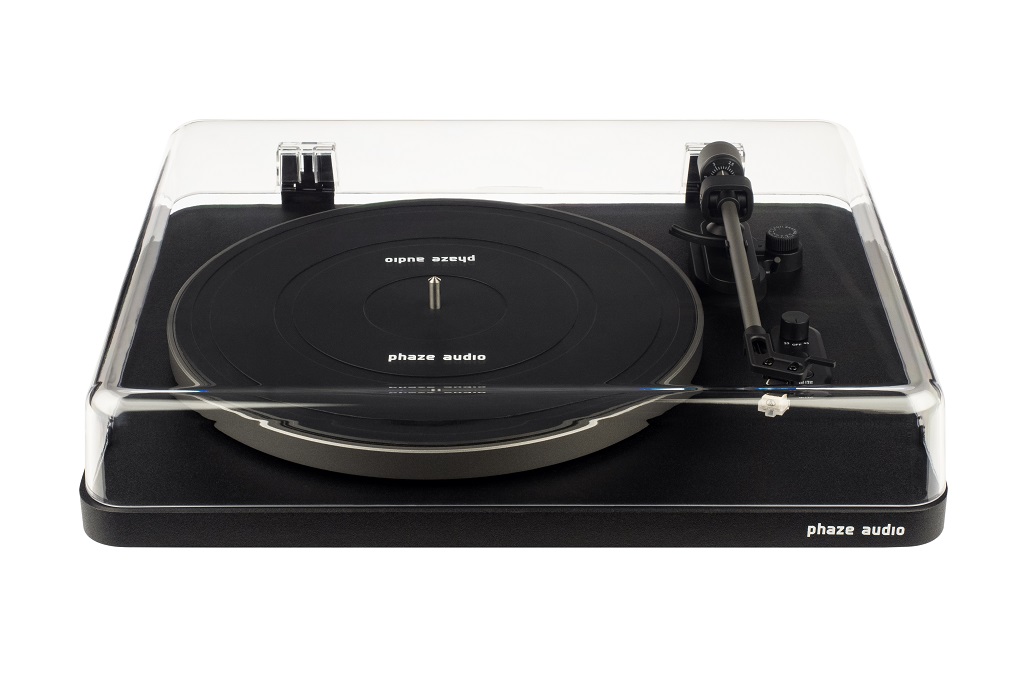

Finishes
Built-In Phono Preamplifier
for easy connection to speakers or amplifier without the need for additional devices.
Great Sound

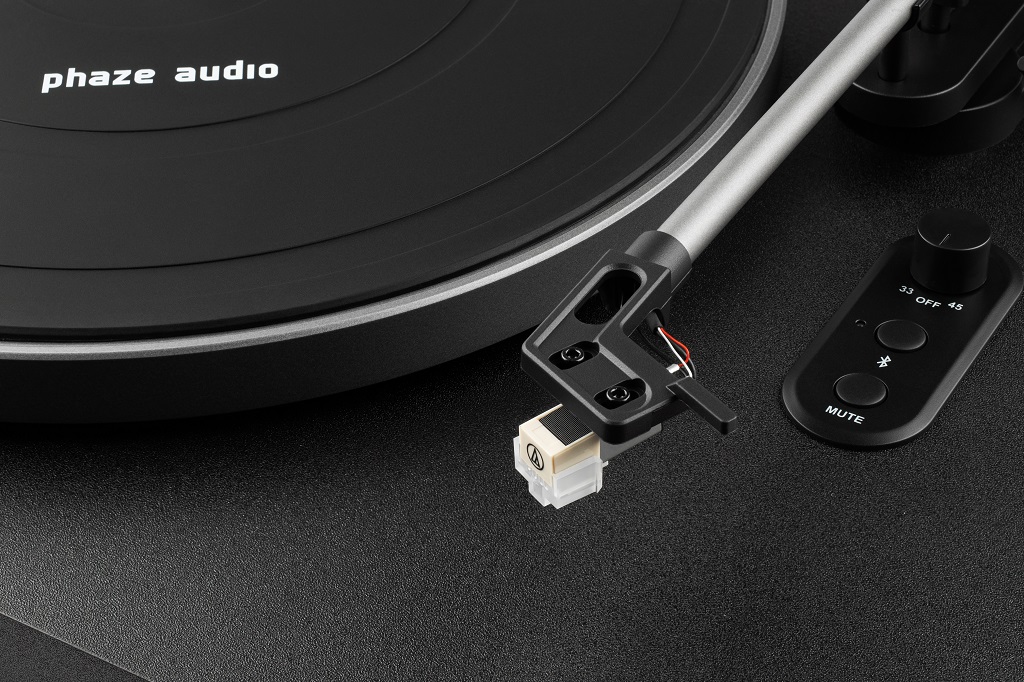

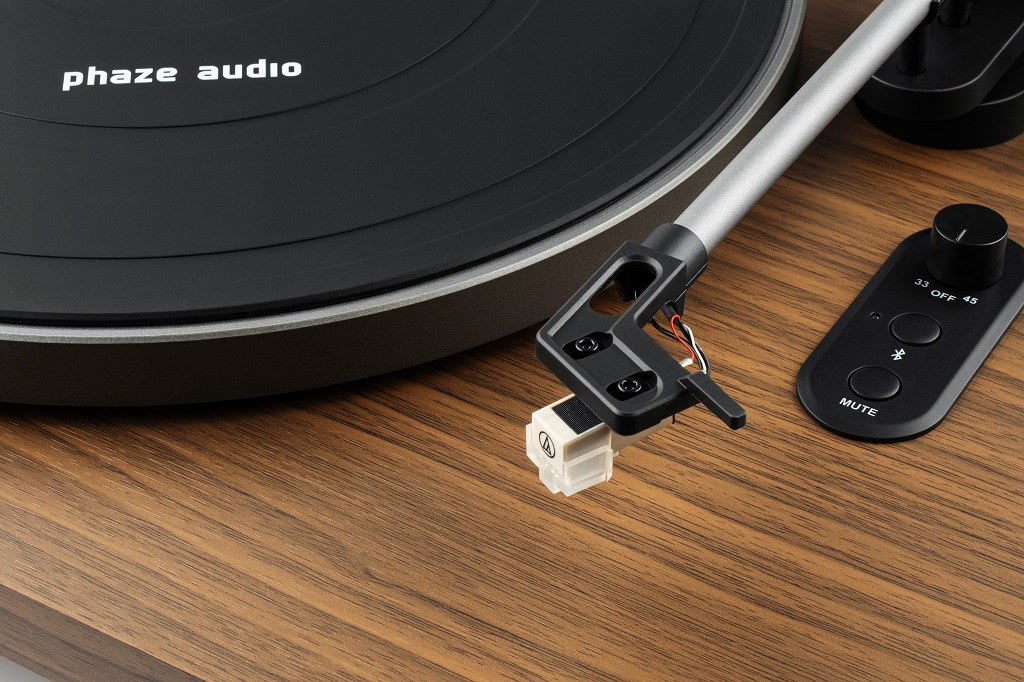

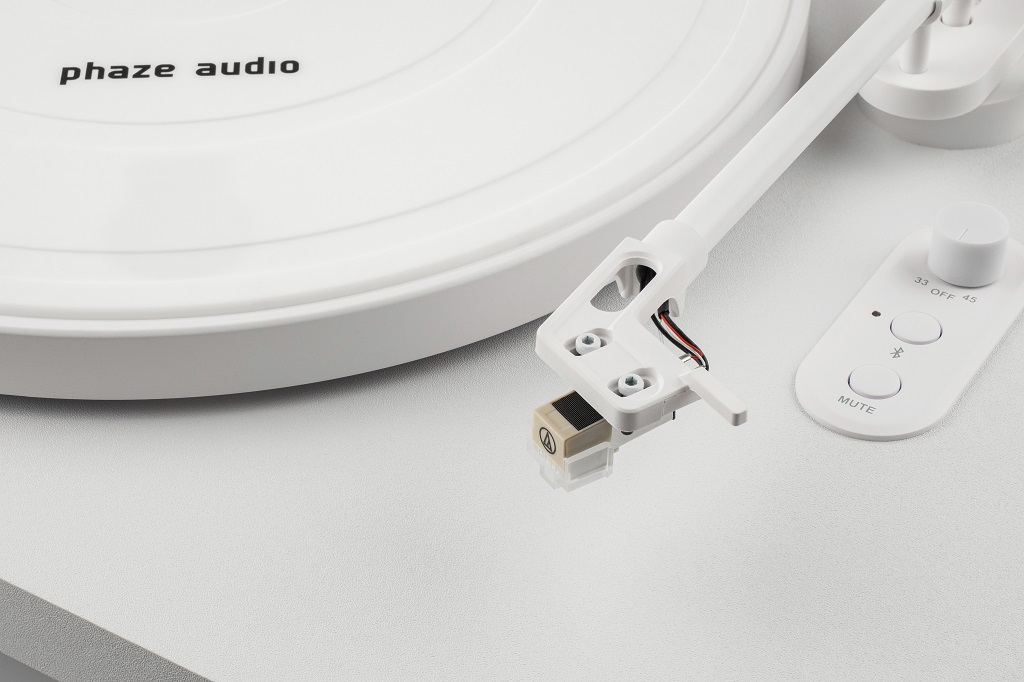

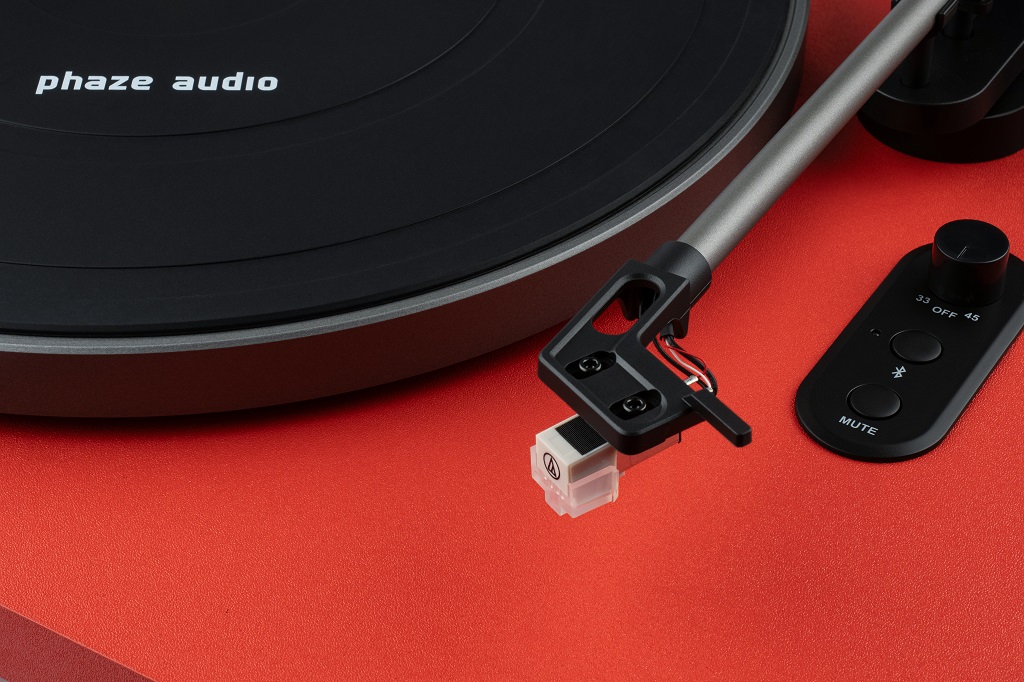

Thanks to the pre-installed Audio-Technica AT3600L cartridge, you get great sound right from the moment you unbox it.
Advanced motor
for increased stability.
Rotation speed
Easily switches between 33 and 45 rpm.
Special design
The rugged support platter features a special design to reduce resonance and increase stability.
Minimum vibration
Spring-loaded feet minimize vibrations from nearby equipment.
Technical Specifications
Turntable
|
Drive Type |
DC Servo Motor |
|
Drive System |
Belt Drive |
|
Speeds |
Off / 33 rpm / 45 rpm |
|
Wow & Flutter |
Less than 0.25% (WTD) |
|
Signal-to-Noise Ratio |
More than 50 dB |
|
RCA Output |
200-280 mV (5 cm/s at 1 kHz) |
Tonearm
|
Design |
Pivoted / Straight |
|
Type |
Gimbal |
Bluetooth
|
Bluetooth Version |
V5.3 |
|
Frequency Range |
2.402 GHz - 2.480 GHz |
|
Bluetooth Support |
HFP, A2DP, AVRCP Profiles |
|
Operating Distance |
10 m |
|
Max. RF Power Output |
<5 dBm |
USB
|
Type |
USB Type-B port |
|
Data Speed |
USB 2.0 Full-Speed |
Cartridge
|
Model |
AT3600L |
|
Replacement Stylus |
ATN3600L |
|
Cartridge Type |
MM (Moving Magnet) |
|
Stylus Type |
Dual Magnet V-Type (VM) |
|
Recommended Load Impedance |
47 kΩ |
|
Recommended Load Capacitance |
150-200 pF |
|
Stylus Tip Shape |
Conical |
|
Stylus Construction |
Bonded Round Shank |
|
Cantilever |
Carbon Fiber Reinforced ABS |
|
Tip Radius |
0.6 mil (15 microns) |
|
Recommended Tracking Force |
2.5 to 3.5 g |
|
Weight |
5 g |
General
|
Power Requirements |
230V AC, 50Hz |
|
Power Consumption |
5W |
|
Dimensions (W x D x H) |
44.0 x 38.5 x 12.6 cm |
